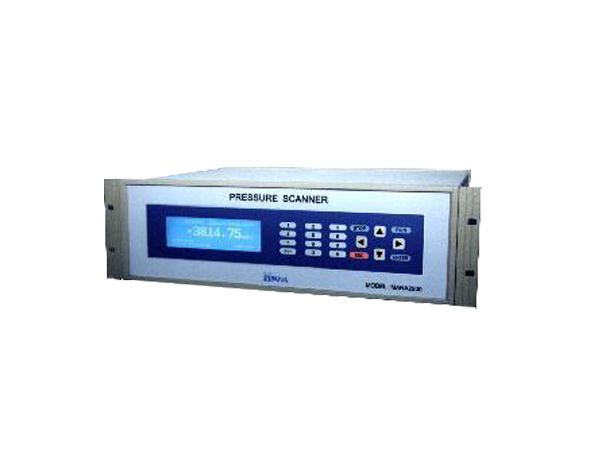

Pressure Scanner
|
|
|
 |
|
Pressure Scanner
|
기본 20채널의 압력라인을 솔레노이드밸브로 선택하여 이를 외부 압력 측정기에 압력을 전송하는 장치로서 정밀 압력 측정장치 한대로 다수의 압력라인을 측정하고자 할 때 사용합니다.
컴퓨터와 RS232 통신이 가능하며 디지털 입력(BCD)을 사용하여 DO카드나 AD카드와 접속이 가능하게 제작되었습니다.
|
|
|

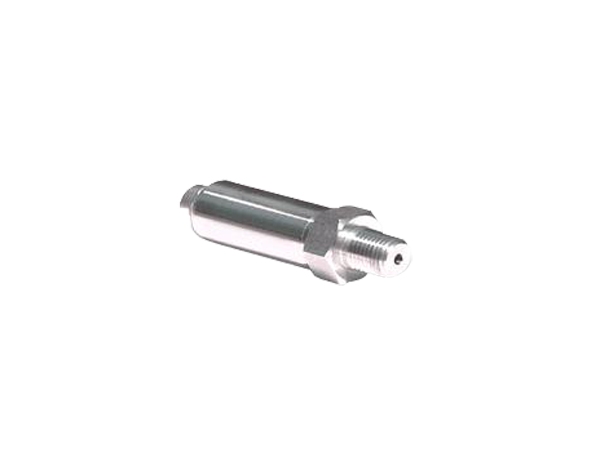

Pressure Sensor - PI1L
(Maker-SENZORS)
|
|
|
|
|
Pressure Sensor - PI1L (Maker-SENZORS)
|
- Accuracy(linearity,hysteresis,repeatability and calibration
: +/-0.15%FS(+/-0.1%FS optional)
- Range : 0 to 30 psi guage/absolute
- Temperature error : +/-0.002%FS/℉
- Long term stability : +/-0.2%FS per annum
- Response time(-3dB) : <5ms
- Resolution : 0.01%FS practical minimum
- Fatigue life : >10 million cycles
- Operating temperature(process) : -40℃ to +125℃
- Ambient temperature : -40℃ to +80℃
- Supply : 6 to 28VDC
- Output : 0 to 1,5,10VDC / 4 to 20mA
- Proof pressure : 2*FS
- Wetted parts : 316L Stainless Steel
- Pressure fitting : 1/4",1/8" NPT female or 1/4"BSP female
|
|
|

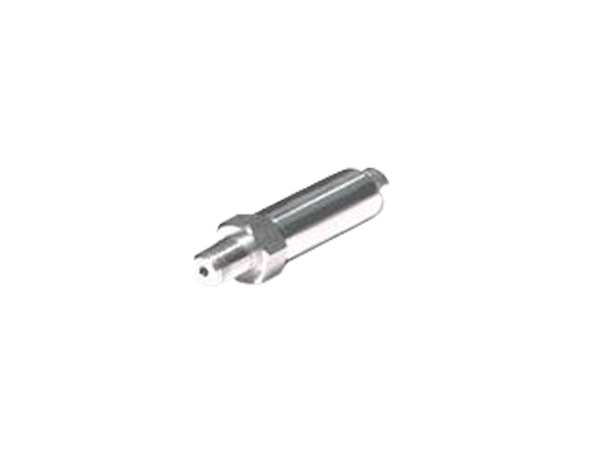

Pressure Sensor - PT1M
(Maker-SENZORS)
|
|
|
|
|
Pressure Sensor - PT1M (Maker-SENZORS)
|
- Accuracy(linearity,hysteresis,repeatability and calibration)
: +/-0.25%FS(+/-0.1%FS optional)
- Range : 0 to 300 psi guage/absolute
- Temperature error : +/-0.01%FS/℉
- Long term stability : +/-0.2%FS per annum
- Response time(-3dB) : <1ms
- Resolution : infinite(0.02%FS practical minimum)
- Fatigue life : >100 million cycles
- Operating temperature(process) : -40℃ to +125℃
- Ambient temperature : -40℃ to +80℃
- Supply : 5 to 28VDC
- Output : 0 to 1,5,10VDC / 4 to 20mA
- Proof pressure : 2*FS
- Wetted parts : 316L Stainless Steel
- Pressure fitting : 1/4",1/8" NPT female or 1/4"BSP female
|
|
|
|
|

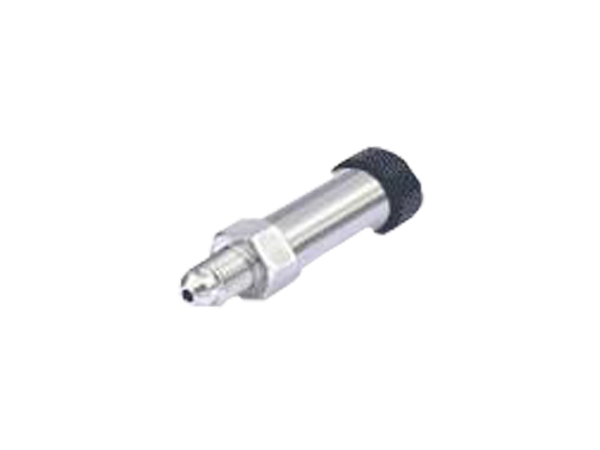

Pressure Sensor - PT2M
(Maker-SENZORS)
|
|
|
|
|
Pressure Sensor - PT2M (Maker-SENZORS)
|
- Accuracy(linearity,hysteresis,repeatability and calibration)
: +/-0.5%FS(+/-0.25%FS optional)
- Range : 0 to 300 psi gauge/absolute
- Temperature error : +/-0.02%FS/℉
- Long term stability : +/-0.2%FS per annum
- Response time(-3dB) : <1ms
- Resolution : infinite(0.02%FS practical minimum)
- Fatigue life : >10 million cycles
- Operating temperature(process) : -40℃ to +100℃
- Ambient temperature : -40℃ to +80℃
- Supply : 5 to 28VDC
- Output : 0 to 1,5,10VDC / 4 to 20mA
- Wetted parts : 316L Stainless Steel
- Pressure fitting : 1/4",1/8" NPT female or 1/4" BSP female
|
|
|

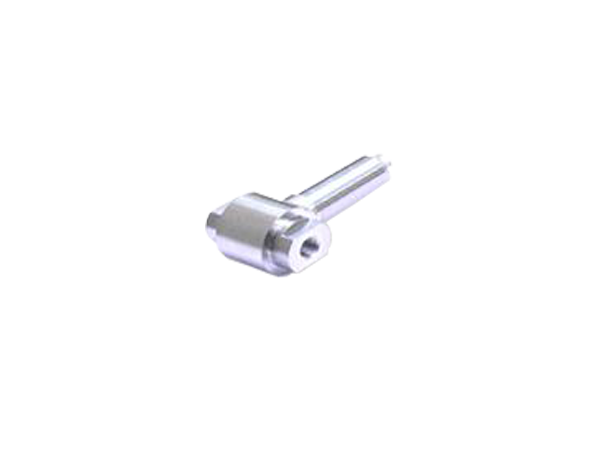

Pressure Sensor - PD1L
(Maker-SENZORS)
|
|
|
|
|
Pressure Sensor - PD1L (Maker-SENZORS)
|
- Accuracy(linearity,hysteresis,repeatability and calibration)
: +/-0.5%FS(+/-0.25%FS optional)
- Range : 0 to 30 psi differential
- Temperature error : +/-0.02%FS/℉
- Static pressure effect : <0.0005%FS/psi
- Long term stability : +/-0.3%FS per annum
- Response time(-3dB) : <10ms
- Resolution : infinite(0.02%FS practical minimum)
- Fatigue life : >1 million cycles
- Operating temperature(process) : -40℃ to +100℃
- Ambient temperature : -40℃ to +80℃
- Supply : 5 to 28VDC
- Output : 0 to 1,5,10VDC / 4 to 20mA
- Max.static pressure : 3000 psi
- Wetted parts : 316L Stainless Steel
- Pressure fitting : 1/4" NPT female or 1/4"BSP female
|
|
|
|
